How to create StructType schema from JSON schema | PySpark

Using Apache Spark class pyspark.sql.types.StructType method fromJson we can create StructType schema using a defined JSON schema.

Refer official documentation link.

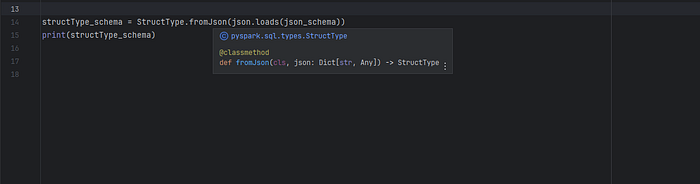

classmethod fromJson(json: Dict[str, Any]) → pyspark.sql.types.StructType

Here is the simple example of converting a JSON schema to StructType. In order to get the correct StructType, we have adhere the syntax of json schema.

from pyspark.sql import SparkSession
from pyspark.sql.types import StructType
import json

spark = SparkSession.builder.getOrCreate()

json_schema = """
{
 "fields": [
  {
   "metadata": {},
   "name": "age",
   "nullable": true,
   "type": "long"
  },
  {
   "metadata": {},
   "name": "firstName",
   "nullable": true,
   "type": "string"
  },
  {
   "metadata": {},
   "name": "lastName",
   "nullable": true,
   "type": "string"
  }
 ],
 "type": "struct"
}
"""

structType_schema = StructType.fromJson(json.loads(json_schema))
print(structType_schema)

Output:

StructType(List(StructField(age,LongType,true),StructField(firstName,StringType,true),StructField(lastName,StringType,true)))

Another example, here reading a complex json file using spark.read and printing its json schema. As we know that DataFrame.schema return StructType &StructType.json() method return json schema.

import json
from pyspark.sql import SparkSession
from pyspark.sql.types import StructType

spark = SparkSession.builder.getOrCreate()

df = spark.read.option('multiLine', True).json("data/cust.json")
json_schema = df.schema.json()

{
   "fields":[
      {
         "metadata":{

         },
         "name":"address",
         "nullable":true,
         "type":{
            "fields":[
               {
                  "metadata":{

                  },
                  "name":"city",
                  "nullable":true,
                  "type":"string"
               },
               {
                  "metadata":{

                  },
                  "name":"postalCode",
                  "nullable":true,
                  "type":"string"
               },
               {
                  "metadata":{

                  },
                  "name":"state",
                  "nullable":true,
                  "type":"string"
               },
               {
                  "metadata":{

                  },
                  "name":"streetAddress",
                  "nullable":true,
                  "type":"string"
               }
            ],
            "type":"struct"
         }
      },
      {
         "metadata":{

         },
         "name":"age",
         "nullable":true,
         "type":"long"
      },
      {
         "metadata":{

         },
         "name":"firstName",
         "nullable":true,
         "type":"string"
      },
      {
         "metadata":{

         },
         "name":"lastName",
         "nullable":true,
         "type":"string"
      },
      {
         "metadata":{

         },
         "name":"phoneNumber",
         "nullable":true,
         "type":{
            "containsNull":true,
            "elementType":{
               "fields":[
                  {
                     "metadata":{

                     },
                     "name":"number",
                     "nullable":true,
                     "type":"string"
                  },
                  {
                     "metadata":{

                     },
                     "name":"type",
                     "nullable":true,
                     "type":"string"
                  }
               ],
               "type":"struct"
            },
            "type":"array"
         }
      }
   ],
   "type":"struct"
}

This we can use this to build more complex schemas.
